A Comprehensive Review of the LM317 Adjustable Voltage Regulator Kit by PEMENOL

In the realm of electronics and DIY projects, having a reliable and versatile power supply is essential. The LM317 Adjustable Voltage Regulator Kit by PEMENOL is a comprehensive electronic kit designed to cater to the needs of electronics enthusiasts, students, and professionals alike. This kit is an AC-DC 110V to 1.25V-12V adjustable step-down power supply buck voltage converter with an LED display, making it an ideal tool for a variety of applications.

Key Features and Specifications

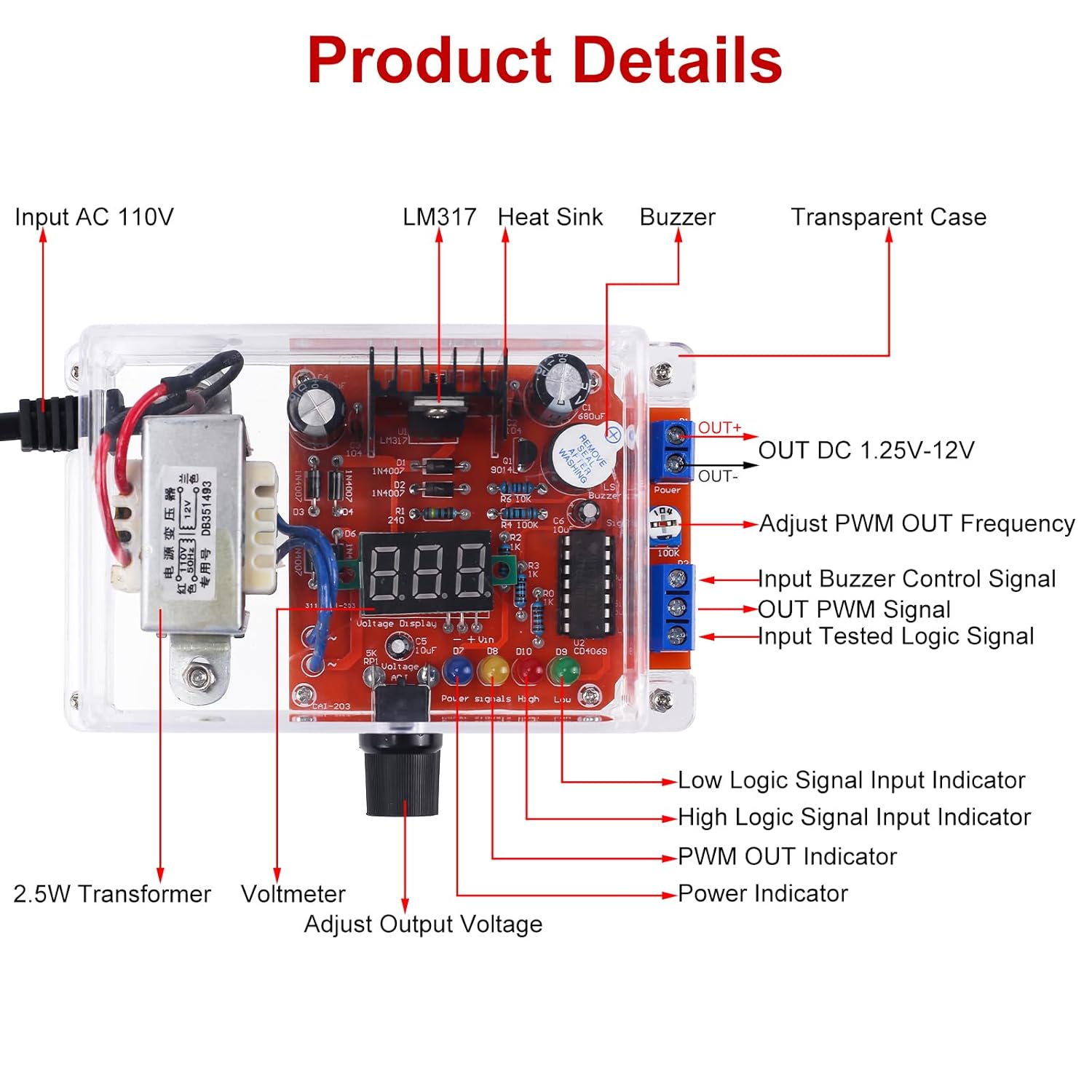

The PEMENOL LM317 Adjustable Voltage Regulator Kit boasts several key features that make it a standout in its class. The kit is capable of outputting a stable voltage that can be adjusted using a potentiometer, allowing users to customize the output to suit their specific needs. The module is designed to provide a regulated power supply, ensuring that the output voltage remains consistent and reliable.

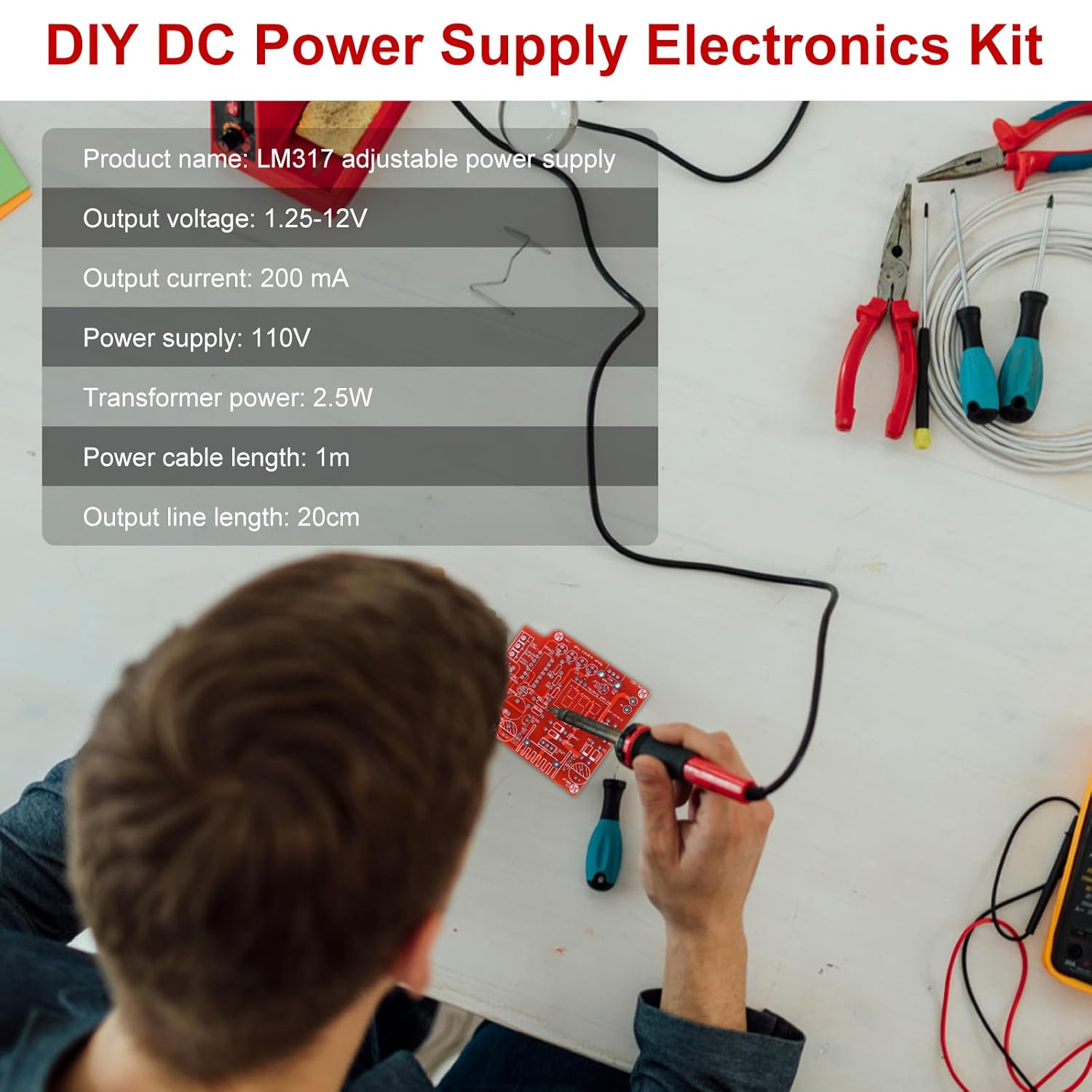

In terms of specifications, the kit has a compact design with package dimensions of 5.35 x 4.33 x 1.81 inches and weighs 9.59 ounces. The kit is manufactured by PEMENOL and has been available on the market since May 12, 2021.

Multifunctional Capabilities

One of the most significant advantages of the PEMENOL LM317 Adjustable Voltage Regulator Kit is its multifunctional capabilities. The kit is not only suitable for teaching and training purposes but also for beginners to practice and hone their skills. It is an excellent choice for electronic enthusiasts, providing a comprehensive platform for hands-on learning and experimentation.

The kit can be used as a low-power power supply, signal generator, and logic signal tester, making it a versatile tool for a wide range of applications. Additionally, the kit features a logic pen function, which allows users to test the logic level of a circuit. The kit also includes a buzzer function, which can be used for sensor alarms, such as soil moisture alarm, temperature alarm, and more.

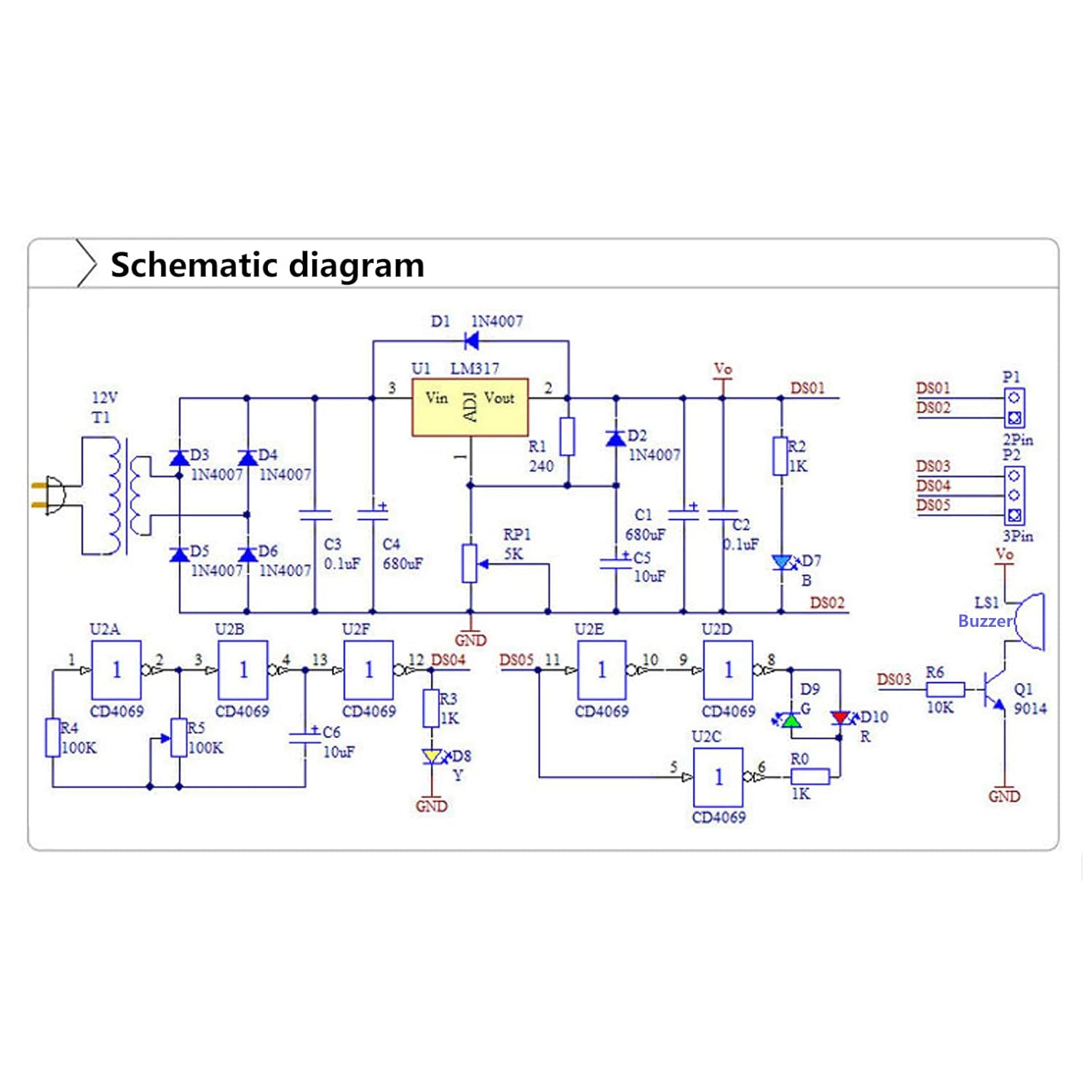

RC Signal Generator and Logic Signal Test Circuit

The PEMENOL LM317 Adjustable Voltage Regulator Kit features a 1-channel adjustable signal generator output, providing a convenient way to generate pulse signals for experimental circuits. However, it is essential to note that the output current is not large, making it suitable only for powering small current circuits. If the power supply load is too large, the voltage will drop, and it is not recommended to use the kit to charge devices such as phones.

The kit also includes a logic signal test circuit, which allows users to test the continuity of wires and low-frequency signals. This feature is particularly useful for troubleshooting and debugging electronic circuits.

Applications and Uses

The PEMENOL LM317 Adjustable Voltage Regulator Kit has a wide range of applications and uses. It can be used as a power supply for small electronic projects, a signal generator for experimental circuits, and a logic signal tester for troubleshooting and debugging. The kit is also suitable for educational purposes, providing a hands-on learning experience for students and electronics enthusiasts.

In addition to its technical applications, the kit can also be used for creative projects, such as building a warm air blower or other DIY electronics projects. The kit’s versatility and ease of use make it an excellent choice for anyone looking to explore the world of electronics and DIY projects.

Conclusion

In conclusion, the PEMENOL LM317 Adjustable Voltage Regulator Kit is a comprehensive and versatile electronic kit that offers a wide range of features and applications. Its adjustable regulated power supply, multifunctional capabilities, and logic signal test circuit make it an ideal tool for electronics enthusiasts, students, and professionals. Whether you are looking to build a small electronic project, troubleshoot a circuit, or simply learn about electronics, the PEMENOL LM317 Adjustable Voltage Regulator Kit is an excellent choice. With its compact design, ease of use, and versatility, this kit is sure to provide hours of creative and educational fun.
